240Bar Hydraulic Earth Auger Attachments For Excavators Drill

Brand Name : APIE

Model Number : KA4000

Certification : CE,ISO9001

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : $5000+

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 100sets per month

Delivery Time : 30 working days after receiving the advance payment

Packaging Details : Method One: Nude packing and overall transport by sea with roll-on-roll-off ship.

Product Name : Hydraulic earth auger

Machinery Test Report : provided

Video outgoing-inspection : provided

Applicable Industries : Construction works

Color : Black

Torque : 1710-4117

Pressure : 80-240

weight : 110

Condition : new

type : mini or large

Contact Now

China Hydraulic Earth Auger Attachments For Excavators Earth Drill Auger Machine

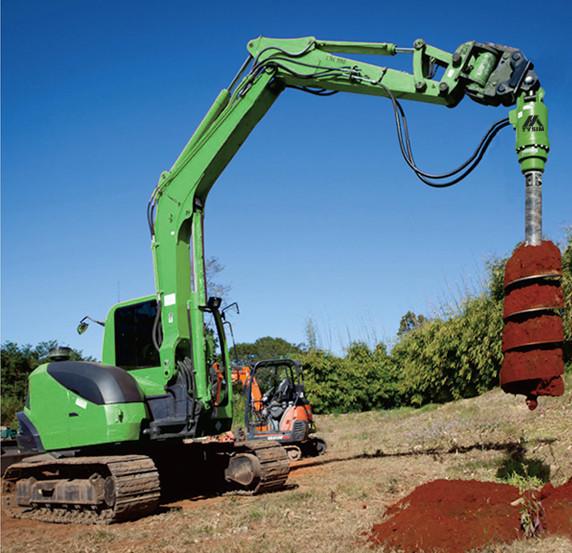

Earth auger is professional equipment for digging holes. It can be mounted to excavator, skid steer loader, crane and backhoe loader and so on. Earth Drills are built to the most exacting standards using only high quality materials and the latest manufacturing techniques available.

Technical Specification of Auger Drill
Type Unit KA2500 KA3000 KA3500 KA4000 KA6000 KA8000
Suitable Excavator T 1.5-3T 2-4T 2.5-4.5T 3-5T 4.5-6T 5-7T
Torque Nm 790-2593 1094-3195 1374-3578 1710-4117 2570-6917 3163-8786
Pressure Bar 70-240 80-240 80-240 80-240 80-240 80-240
Flow Lpm 25-65 25-70 40-80 50-92 40-89 48-110
Rotate Speed Rpm 36-88 30-82 35-75 35-68 20-46 20-45
Output Shaft mm 65Rnd 65Rnd 65Rnd 65Rnd 75Sq 75Sq
Weight Kg 95 100 105 110 105 110
Max Auger Diameter Clay/Shale mm 300 300 350 350 500 600
Max Auger Diameter Earth mm 350 400 450 500 600 800

Technical Specification of Auger Drill

Type		 Unit KA9000 KA15000 KA20000 KA25000 KA30000 KA59000
Suitable Excavator T 6-8T 10-15T 12-17T 15-22T 17-25T 20-35T
Torque Nm 3854-9961 5307-15967 6715-20998 8314-25768 15669-30393 27198-59403
Pressure Bar 80-240 80-260 80-260 80-260 80-260 160-350
Flow Lpm 70-150 80-170 80-170 80-170 80-170 100-250
Rotate Speed Rpm 23-48 23-48 15-32 12-26 12-21 10-22
Output Shaft mm 75Sq 75Sq 75Sq 75Sq 75Sq 110Sq
Weight Kg 115 192 200 288 298 721
Max Auger Diameter Clay/Shale mm 800 900 1000 1100 1200 1500
Max Auger Diameter Earth mm 1000 1200 1400 1500 1600 2000

Product details
240Bar Hydraulic Earth Auger Attachments For Excavators Drill

240Bar Hydraulic Earth Auger Attachments For Excavators Drill


FAQ
Q1: How to choose a suitable model?
Pls kindly let us know your following information, and then we recommend right model for you.
1 Brand and model of Excavator/Backhoe/Skid Steer loader 2.Hole diameter 3.Hole depth 4.Soil condition
Q2: Can earth drill fit a variety of machines?
Yes.as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue
Q3: Do I need to purchase spare parts when ordering an earth drill?
It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow the service schedule as outlined in the operator manual. It is advisable to purchase spare wearing parts (teeth and Pilots).
Q4: How about the delivery time?
Within 5-10 working days after receiving T/T payment.
