Product Description:
Our advantages include providing high-quality hoses and couples that come standard with all earth drills (except large ones) as well as having an epicyclic gearbox and a non-dislodgement shaft.
Our epicyclic gearbox is known for its ability to efficiently amplify torque and ensuring durability and reliability. This is a great feature that is sought out in many customers.
The non-dislodgement shaft is another unique feature exclusive to Auger Torque. This one-piece drive shaft is assembled top down and locked into the earth drill housing, guaranteeing that the shaft will never fall out, thus creating a safer and more secure work environment.
Features:
| Technical Specification of Auger Drill |
| Type | Unit | AP2500 | AP3000 | AP3500 | AP4000 | AP6000 | AP8000 |
| Suitable Excavator | T | 1.5-3T | 2-4T | 2.5-4.5T | 3-5T | 4.5-6T | 5-7T |
| Torque | Nm | 790-2593 | 1094-3195 | 1374-3578 | 1710-4117 | 2570-6917 | 3163-8786 |
| Pressure | Bar | 70-240 | 80-240 | 80-240 | 80-240 | 80-240 | 80-240 |
| Flow | Lpm | 25-65 | 25-70 | 40-80 | 50-92 | 40-89 | 48-110 |
| Rotate Speed | Rpm | 36-88 | 30-82 | 35-75 | 35-68 | 20-46 | 20-45 |
| Output Shaft | mm | 65Rnd | 65Rnd | 65Rnd | 65Rnd | 75Sq | 75Sq |
| Weight | Kg | 95 | 100 | 105 | 110 | 105 | 110 |
| Max Auger Diameter Clay/Shale | mm | 300 | 300 | 350 | 350 | 500 | 600 |
| Max Auger Diameter Earth | mm | 350 | 400 | 450 | 500 | 600 | 800 |
| Technical Specification of Auger Drill |
Type | Unit | AP9000 | AP15000 | AP20000 | AP25000 | AP30000 | AP59000 |
| Suitable Excavator | T | 6-8T | 10-15T | 12-17T | 15-22T | 17-25T | 20-35T |
| Torque | Nm | 3854-9961 | 5307-15967 | 6715-20998 | 8314-25768 | 15669-30393 | 27198-59403 |
| Pressure | Bar | 80-240 | 80-260 | 80-260 | 80-260 | 80-260 | 160-350 |
| Flow | Lpm | 70-150 | 80-170 | 80-170 | 80-170 | 80-170 | 100-250 |
| Rotate Speed | Rpm | 23-48 | 23-48 | 15-32 | 12-26 | 12-21 | 10-22 |
| Output Shaft | mm | 75Sq | 75Sq | 75Sq | 75Sq | 75Sq | 110Sq |
| Weight | Kg | 115 | 192 | 200 | 288 | 298 | 721 |
| Max Auger Diameter Clay/Shale | mm | 800 | 900 | 1000 | 1100 | 1200 | 1500 |
| Max Auger Diameter Earth | mm | 1000 | 1200 | 1400 | 1500 | 1600 | 2000 |
Applications:

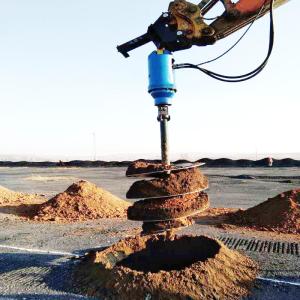

Are you looking for an efficient and reliable Hydraulic Earth Auger for your project? APIE's AP5500 Hydraulic Earth Drilling Machine is the ideal choice for you. It is a powerful Hydraulic Ground Auger designed to make the job of drilling into the earth easy and efficient. The AP5500 Hydraulic Earth Digger is light and easy to operate, making it perfect for a wide variety of applications and settings.
The AP5500 Hydraulic Post Hole Digger comes with a minimum order quantity of 1 set and is packaged in wooden box for safe delivery. It has a rotate speed of 30-87, unit diameter of 269 mm and unit height of 780 mm. Furthermore, it has an output shaft with 2.5 hex and pressure of 80-260 bar. With the help of this Hydraulic Earth Auger, you can easily finish your project in no time.
You can purchase the AP5500 Hydraulic Earth Digger from APIE with a payment term of T/T and receive it within 20 days. So, don't wait any longer and get your hands on this reliable and efficient Hydraulic Ground Auger now.
Customization:
Customized Hydraulic Earth Auger
Apie AP5500 Hydraulic Earth Auger is the perfect solution for drilling and earth moving projects. It is a professional Hydraulic Earth Drilling Machine with a 2.5 Hex output shaft, a flow of 40-115 Lpm, suitable for 4.5-6 T excavators, and a pressure of 80-260 Bar. Our unit diameter is 269 Mm, which makes it the ideal choice for your drilling project. It is powerful and reliable, and can make your work easier and faster.
We offer customization services to meet your specific needs. We can customize the following features:
- Brand Name: Apie
- Model Number: AP5500
- Place of Origin: China
- Minimum Order Quantity: 1set
- Packaging Details: Wooden
- Delivery Time: 20days
- Payment Terms: T/T
- Output Shaft Opt: 2.5 Hex
- Flow: 40-115 Lpm
- Suitable Excavator: 4.5-6 T
- Pressure: 80-260 Bar
- Unit Diameter: 269 Mm
If you are looking for a professional Hydraulic Ground Auger or Hydraulic Earth Operator, Apie AP5500 Hydraulic Earth Auger is the perfect choice for you. Contact us today to get your customized Hydraulic Earth Auger.
Support and Services:
Hydraulic Earth Auger Technical Support and Service offers our customers a comprehensive package of support and service to ensure their equipment is running at its maximum efficiency. Our experienced service technicians provide on-site troubleshooting and repair services for all Hydraulic Earth Augers. We also provide on-site preventative maintenance programs as well as remote monitoring and diagnostics services. Our dedicated parts department is equipped with a wide range of parts and accessories for your earth auger, allowing us to quickly and cost-effectively resolve any issues that may arise.
We understand the importance of customer service and strive to provide the best possible experience for our customers. Our knowledgeable staff is available to answer any questions and provide guidance on the best course of action. We also offer a customer satisfaction guarantee, meaning that if you are not satisfied with the service or product you receive, we will make it right.
Packing and Shipping:
Hydraulic Earth Auger will be packaged to ensure protection during shipping. The auger will be secured to a pallet and shrink wrapped for further protection. The pallet will then be secured to a wooden case, and the case will be reinforced with corner protectors, shrink wrapping and strapping. The case will be labeled with the appropriate shipping information.
The Hydraulic Earth Auger will be shipped via freight carrier. The freight will be insured to protect against any potential damage during transit. The shipment will include appropriate packing slips and invoices.
FAQ:
Q1: How to choose a suitable model?
Pls kindly let us know your following information, and then we recommend right model for you.
1 Brand and model of Excavator/Backhoe/Skid Steer loader 2.Hole diameter 3.Hole depth 4.Soil condition
Q2: Can earth drill fit a variety of machines?
Yes.as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue
Q3: Do I need to purchase spare parts when ordering an earth drill?
It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow the service schedule as outlined in the operator manual. It is advisable to purchase spare wearing parts (teeth and Pilots).
Q4: How about the delivery time?
Within 5-10 working days after receiving T/T payment.
